Powerful Electric Jockey Wheel (Max vehicle load: 2722 KG (6000LB)) new clamp

FOB Reference Price:Get Latest Price
$1.00 - $400.00 / Pieces | 100 Piece/Pieces (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Use:
Trailer Parts
Parts:
Trailer Wheels
Max Payload:
6000LB
Size:

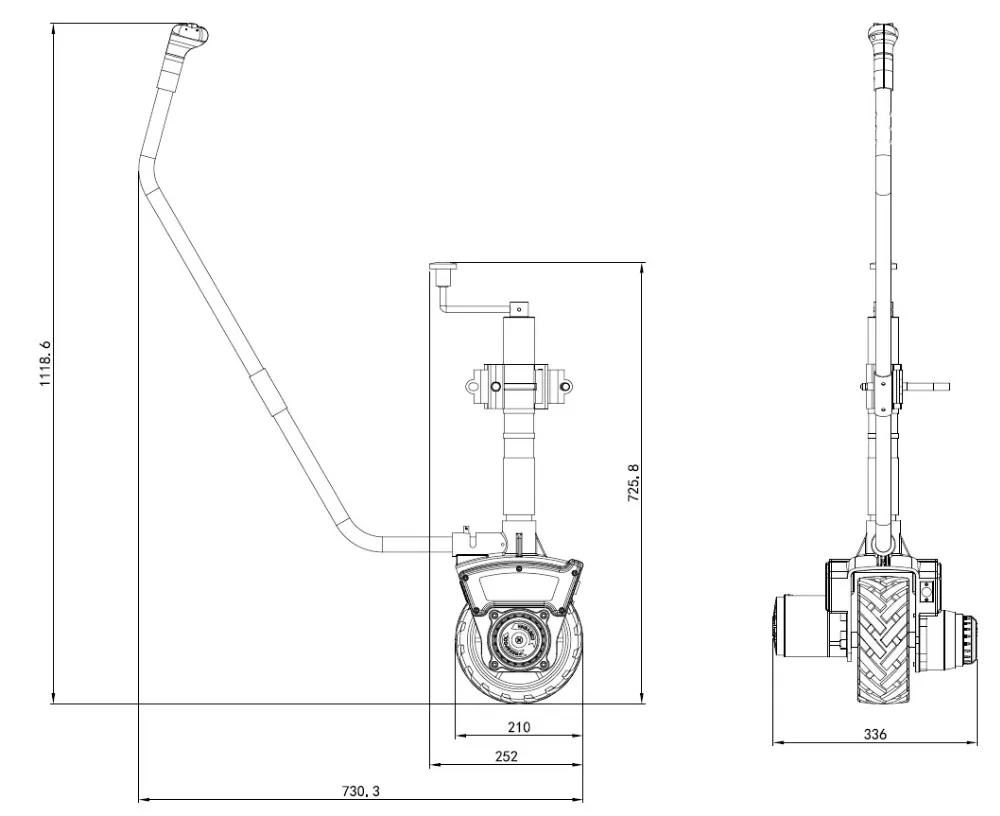

770mmx390mmx290mm
Place of Origin:
Zhejiang, China (Mainland)
Brand Name:
NOVAWIN
Model Number:
NVYC500
Recommend power:
DC 12V, 20Ah lead-acid battery or jumpstart
motor:
12V/550W
speed:
6-7m/min
gear ratio:
494:1
break:
automatically break
move in incline:
les tahn 7 incline
max vehicle load on level load:
6000lbs/2722kgs
max jockey wheel load:
1100lbs/498kgs
Supply Ability
Supply Ability:
700 Piece/Pieces per Day
Packaging & Delivery
Packaging Details
Using the stronge carton then on the pallet. Or as per customer's requirement
Port
Ningbo
Lead Time :
Ready for ship in 10-25 days after receiving deposit payment

Powerful Electric Jockey Wheel (Max vehicle load: 2722 KG (6000LB)) New Clamp







Specifications:



Item No.:NVYC500
Recommend power: DC 12V, 20Ah lead-acid battery or jumpstart
Motor: 12V/550W
Speed: 6-7m/min
Gear ratio: 494:1
Brake: automatically
Move on incline: less than 7 degree incline
Jack maximum lifting height: 22 cm
Max vehicle load: 2722 KG (6000LB)
Max jockey wheel load: 498 KG (1100LB)

Below are some advantages of our new style electric caravan mover :
1. 550W more powerful motorincrease the vehicle load capacity and wheel load capacity. The mover reach 7 degree on incline. The Max vehicle load and Max jockey wheel load have remarkable progress than other products.
2.  We use 8.3 inch A380 reinforced aluminum alloy wheel hub, tread pattern solid rubber tire, provide strong carrying capacity, grip and long service life.
3. Integrated stamping forming A380 reinforced aluminum wheel frame,
provide high vehicle load capacity and wheel load capacity.
4. The motor housing use seamless steel pipe materials,  have sealing gaskets on both sides of internal and external motor housing. The wheel carrier and gear box have O -ring design to satisfy waterproof. The intergated design of mover bracket and control box, the wires could be hidden enough.
5. The mover surface use bright silver baking paint treatment, provide
excellent rust resistance, the mover appearance seemed more beautiful.
6. The motor have over-current protect function, to avoid the motor damaged caused by excess current operation.
7. Increase clutch funtion, usually the caravan mover tire couldn't roll if without an electric
power. Our idea is in case of don't have electric power, we can let the clutch knob in disengage status, the caravan mover can still roll and caravan/trailer can move by human power, this is a very attractive feature other manufacturer don't have.





Take a walk around our production workshops for NVYC500
